PERFORATED FILM
Machine Use. Breathable. Cost-effective
Your Industry
-
Flower & plant
wrapping for flowers and plant
-
Flower & plant
wrapping for flowers and plant
-
Beer&Cans Products
products that are wrapped hot, like: bee,sparkling wine,fruit juices, beverages, canned fruit,pickles,baked products.
-
Frozen Meat & Fish Products
a faster and more uniform chilling process of meat &fish
ProblemYou Need Solve
The problems encountered
• bad transpiration
• inside condensation
• constant inside temperature
• dampness
• damage to buds and leaves
• dampness that might damage the cartons
• rust on tops and corks
• air flow
• mould
• post-sterilization and post packing treatment
• fast freezing
• development of bacteria
• drying
Wrapping Safety &Cost Down
• Superior Load Retention & Anti-Collapse Performance
• Reliable All-Round Physical Protection
• Significant Reduction in Comprehensive Consumables Cost
• Obvious Reduction in Labor & Operation Cost
• Zero Risk of Customs Clearance & Claim Cost
Our Solutions

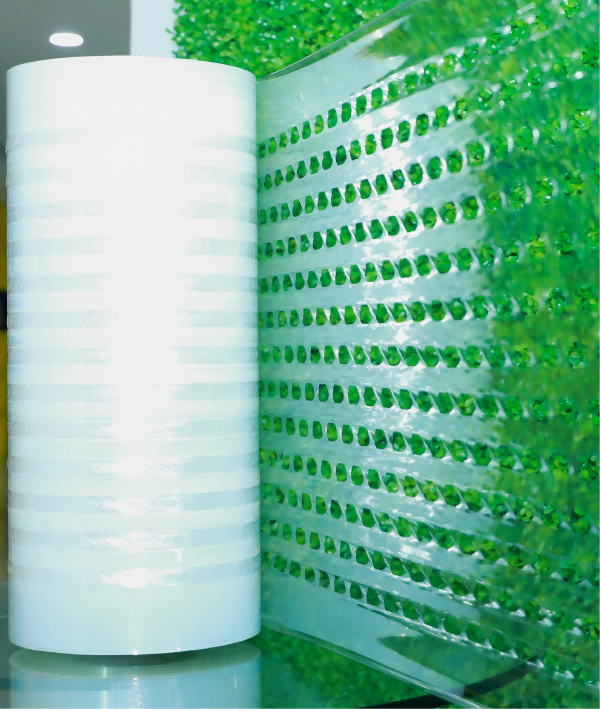

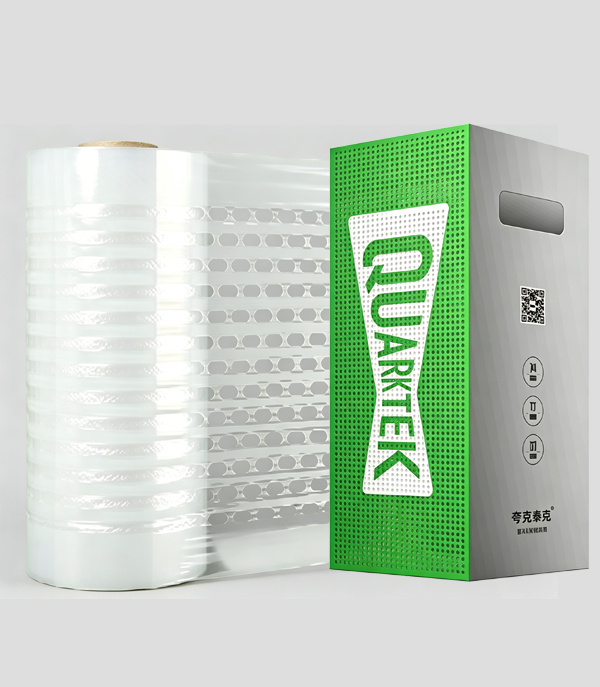

Machine use Perforated film machine use
Parameter
| Length | 1470m |
| Width | 500mm |
| Net weight | 12KG |
| Thickness | 23mic |
| Stretch rate | 200% (1m-3m) |
| hole size | 2.5x1.5mm |
| hole shape | rounded rectangle |
| Rows of holes | 13 |
| hole distance(horizontal) | 10mm |
| hole distance (verticai) | 18mm |
| Gross weight | 13.2KG |
Pallet Size:
1.15*1.15*1.2m / 50 rolls
40HQ container:
36pallets/1800rolls

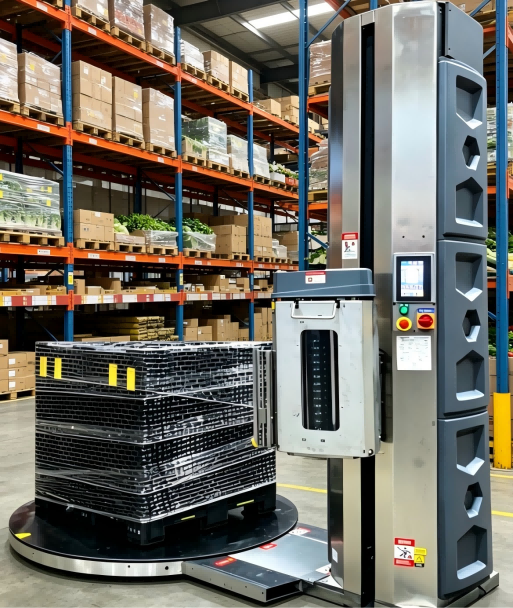

X100s Pallet Wrapper
Compatible with Perforated Film

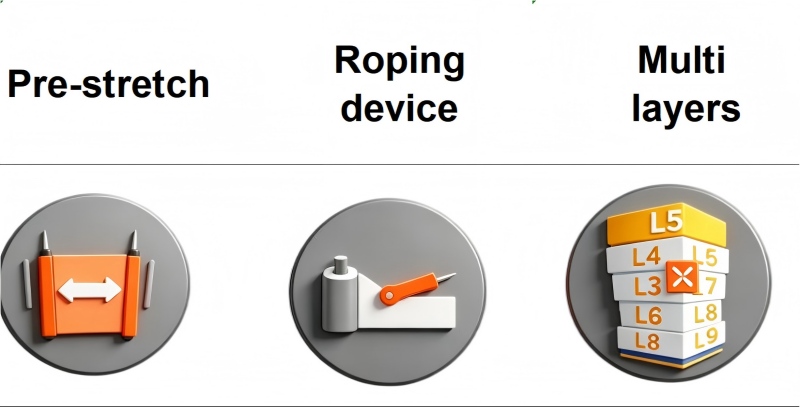

| Pre-stretch | Roping device | Multi layers |
|
|
|
- Cost-Effective:
High 150% film stretch rate reduces film usage and lowers long-term packaging costs
- Stable & Neat Packaging:
Electric tension control + optimized air ventilation eliminates packaging flaws
- High Compatibility:
24 programmable recipes adapt to full-range product wrapping demands
-Easy Operation:
Intelligent memory and one-click switching, low requirement for operators
- Durable & Reliable:
Optimized structural design, stable operation,low failure rate
-High-Strength Roping Reinforcement:
Dual-sideelctrcfilmropingsystemformshigh-tensilefilmropes,providnguniformand strong binding force for pallet loads
- Anti-Collapse & Anti-Slip:
Effectivelstopscargoshiingsldigandcolapsigduringtransitandstoragega enhancing packaging stability and safety
- Flexible Multi-Layer Wrapping:
Supports arbitrary height reinforcement wrapping and hybrid fullroping & perforated film wrapping, dual advantages of strong binding and breathable packaging
